DMJ2092-000, DMJ2823-000 Datasheet - Skyworks

DMJ2092-000 Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices

Skyworks beam-lead silicon Schottky barrier mixer diodes are designed for applications through 40 GHz. The beam-lead design reduces the problem of bonding to the very small area characteristic of low capacitance junctions. Beam-lead Schottky barrier mixer diodes are made by the deposition of a suita.

DMJ2092-000 Features

* Low 1/f noise

* Low intermodulation distortion

* Statistical Process Control wafer fabrication Skyworks Green™ products are compliant with all applicable legislation and are halogen-free. For additional information, refer to Skyworks Definition of Green™, document number SQ04-0074. Des

DMJ2092-000, DMJ2823-000 Datasheet

This datasheet PDF includes multiple part numbers: DMJ2092-000, DMJ2823-000. Please refer to the document for exact specifications by model.

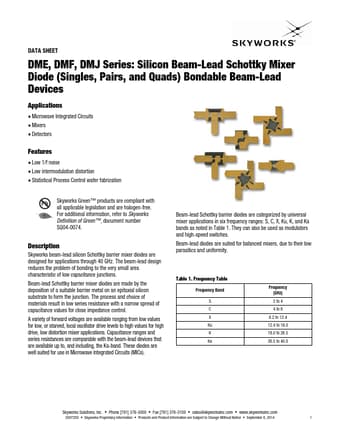

DMJ2092-000 Datasheet Preview Page 2 DMJ2092-000 Datasheet Preview Page 3

Datasheet Details

Part number:

DMJ2092-000, DMJ2823-000

Manufacturer:

Skyworks

File Size:

734.17 KB

Description:

Silicon beam-lead schottky mixer diode bondable beam-lead devices.

This datasheet PDF includes multiple part numbers: DMJ2092-000, DMJ2823-000. Please refer to the document for exact specifications by model.
