DMJ2093-000

Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices

DMJ2093-000 Features

* Low 1/f noise

* Low intermodulation distortion

* Statistical Process Control wafer fabrication Skyworks Green™ products are compliant with all applicable legislation and are halogen-free. For additional information, refer to Skyworks Definition of Green™, document number SQ04-0074. Des

DMJ2093-000 General Description

Skyworks beam-lead silicon Schottky barrier mixer diodes are designed for applications through 40 GHz. The beam-lead design reduces the problem of bonding to the very small area characteristic of low capacitance junctions. Beam-lead Schottky barrier mixer diodes are made by the deposition of a suita.

DMJ2093-000 Datasheet (734.17 KB)

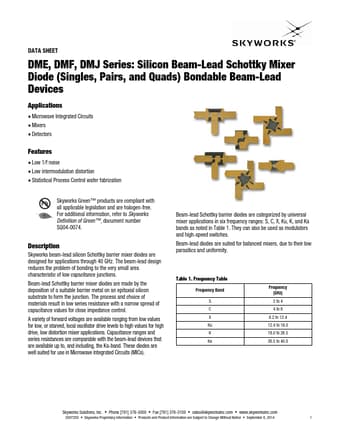

Preview of DMJ2093-000 PDF

Datasheet Details

Part number:

DMJ2093-000

Manufacturer:

Skyworks

File Size:

734.17 KB

Description:

Silicon beam-lead schottky mixer diode bondable beam-lead devices.
DATA SHEET DME, DMF, DMJ Series: Silicon Beam-Lead Schottky Mixer Diode (Singles, Pairs, and Quads) Bondable Beam-Lead Devices Applications
* Micr.
