SG8020 Datasheet, Optocoupler, Solid State Optronic

SG8020 Features

  • Optocoupler
  • High Common Mode Rejection: 25kV/µS minimum @ VCM = 1500V
  • 2.5A Maximum Peak Output Current
  • Fast Switching Speeds o 400nS Maximum Propagation Delay o 250nS

PDF File Details

Part number:

SG8020

Manufacturer:

Solid State Optronic

File Size:

958.91kb

Download:

📄 Datasheet

Description:

Igbt gate drive optocoupler. The SG8020 is an optically coupled 2.5A Output Current Gate Driver, designed to drive most 1200V / 100A IGBTs and MOSFETs. It is inte

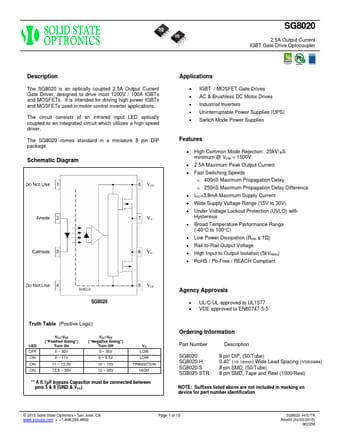

Datasheet Preview: SG8020 📥 Download PDF (958.91kb)
Page 2 of SG8020 Page 3 of SG8020

SG8020 Application

  • Applications The circuit consists of an infrared input LED optically coupled to an integrated circuit which utilizes a high speed driver. The SG802
