SG8050 Datasheet, Optocoupler, Solid State Optronic

SG8050 Features

  • Optocoupler
  • High Common Mode Rejection: 15kV/S minimum @ VCM = 1500V
  • 0.6A Maximum Peak Output Current
  • Fast Switching Speeds o 500nS Maximum Propagation Delay

PDF File Details

Part number:

SG8050

Manufacturer:

Solid State Optronic

File Size:

734.57kb

Download:

📄 Datasheet

Description:

Igbt gate drive optocoupler. The SG8050 is an optically coupled 0.6A Output Current Gate Driver, designed to drive most 1200V / 50A IGBTs and MOSFETs. It is inten

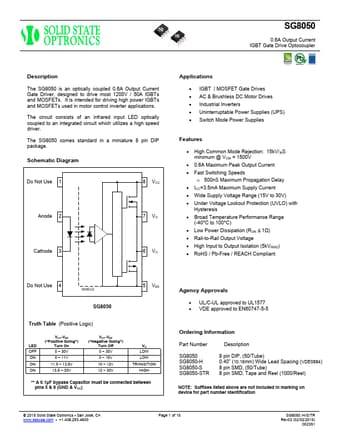

Datasheet Preview: SG8050 📥 Download PDF (734.57kb)
Page 2 of SG8050 Page 3 of SG8050

SG8050 Application

  • Applications The circuit consists of an infrared input LED optically coupled to an integrated circuit which utilizes a high speed driver. The SG805

TAGS

SG8050
IGBT
Gate
Drive
Optocoupler
Solid State Optronic
