CXA1372BQ - RF Signal Processing Servo Amplifier for CD Player

Product Overview

Sony Corporation

📥 Download Datasheet

CXA1372BQ RF Signal Processing Servo Amplifier for CD Player by Sony Corporation - Datasheet Preview — Datasheet preview – CXA1372BQ

Datasheet Details

Part number	CXA1372BQ
Manufacturer	Sony Corporation
File Size	710.00 KB
Description	RF Signal Processing Servo Amplifier for CD Player
Datasheet	CXA1372BQ Datasheet

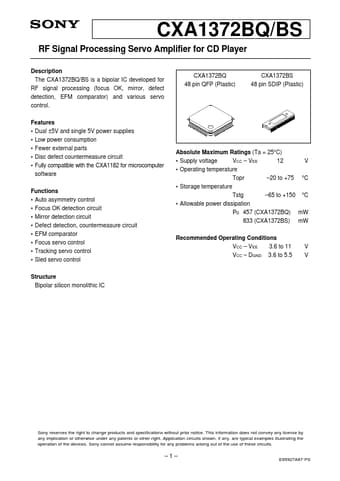

Additional preview pages of the CXA1372BQ datasheet.

Product details

Description

The CXA1372BQ/BS is a bipolar IC developed for RF signal processing (focus OK, mirror, defect detection, EFM comparator) and various servo control.

Features

Dual ±5V and single 5V power supplies.
Low power consumption.
Fewer external parts.
Disc defect countermeasure circuit.
Fully compatible with the CXA1182 for microcomputer software Functions.
Auto asymmetry control.
Focus OK detection circuit.
Mirror detection circuit.
Defect detection, countermeasure circuit.
EFM comparator.
Focus servo control.
Tracking servo control.
Sled serv.
