CXA1645P - RGB Encoder

Product Overview

Sony Corporation

📥 Download Datasheet

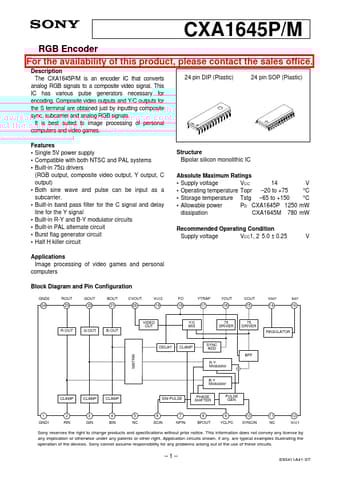

CXA1645P RGB Encoder by Sony Corporation - Datasheet Preview — Datasheet preview – CXA1645P

Datasheet Details

Part number	CXA1645P
Manufacturer	Sony Corporation
File Size	299.38 KB
Description	RGB Encoder
Datasheet	CXA1645P Datasheet
Additional preview pages of the CXA1645P datasheet.

Product details

Description

The CXA1645P/M is an encoder IC that converts analog RGB signals to a composite video signal.

Features

Single 5V power supply.
Compatible with both NTSC and PAL systems.
Built-in 75Ω drivers (RGB output, composite video output, Y output, C output).
Both sine wave and pulse can be input as a subcarrier.
Built-in band pass filter for the C signal and delay line for the Y signal.
Built-in R-Y and B-Y modulator circuits.
Built-in PAL alternate circuit.
Burst flag generator circuit.
Half H killer circuit.
