CXA2013M, EIAJ Sound Multiplexing Decoder

CXA2013M EIAJ Sound Multiplexing Decoder .
The CXA2013M is a bipolar IC designed as EIAJ TV sound multiplexing decoder, provides various functions including sound multiplexing demodulation, bro.

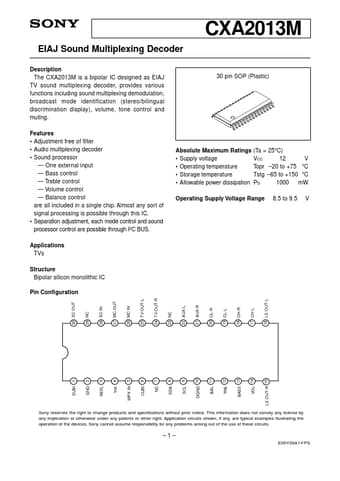

datasheet Preview Page 1 from Datasheet4u.com

CXA2013M_SonyCorporation.pdf

CXA2013M Datasheet Preview — Preview of CXA2013M PDF

Datasheet Details

Part number:

CXA2013M

Manufacturer:

Sony Corporation

File Size:

197.64 KB

Description:

EIAJ Sound Multiplexing Decoder

Features

* Adjustment free of filter
* Audio multiplexing decoder
* Sound processor
* One external input
* Bass control
* Treble control
* Volume control
* Balance control are all included in a single chip. Almost any sort of signal processing i

Applications

* TVs Structure Bipolar silicon monolithic IC Pin Configuration 24 TV OUT-R 25 TV OUT-L 16 LS OUT-L 27 MC OUT 30 SC OUT 21 AUX-R 22 AUX-L 26 MC IN 28 SC IN 18 CH-R 20 CL-R 17 CH-L 19 CL-L 30 pin SOP (Plastic) Absolute Maximum Ratings
* Supply voltage
* Operating temperature
