CXA2016S, Sync Identification for CRT Display

CXA2016S Sync Identification for CRT Display .
The CXA2016S is used for sync signal identification and waveform shaping in the CRT computers display for multi-scan system.

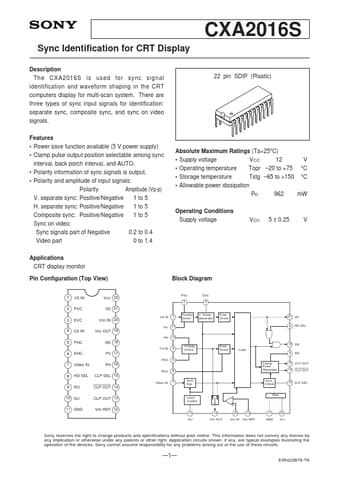

datasheet Preview Page 1 from Datasheet4u.com

CXA2016S_SonyCorporation.pdf

CXA2016S Datasheet Preview — Preview of CXA2016S PDF

Datasheet Details

Part number:

CXA2016S

Manufacturer:

Sony Corporation

File Size:

183.52 KB

Description:

Sync Identification for CRT Display

Features

* Power save function available (5 V power supply)
* Clamp pulse output position selectable among sync interval, back porch interval, and AUTO.
* Polarity information of sync signals is output.
* Polarity and amplitude of input signals: Polarity Amplitude (Vp-p) V. se

Applications

* CRT display monitor Pin Configuration (Top View) 1 2 3 VCC 22 VD 21 VSS IN 20 VSS OUT 19 PH 16 Polarity Check Exist Check 18 HD Logic VS IN PV 22 pin SDIP (Plastic) Absolute Maximum Ratings (Ta=25°C)
* Supply voltage VCC 12 V
* Operating temperature Topr
* 20 to +75 °C
