CXA2500N, Dual REC/PB Preamplifier

CXA2500M/N Dual REC/PB Preamplifier .
The CXA2500M/N is a dual recording/playback preamplifier system bipolar IC which has been developed for the low voltage operating cassette tape record.

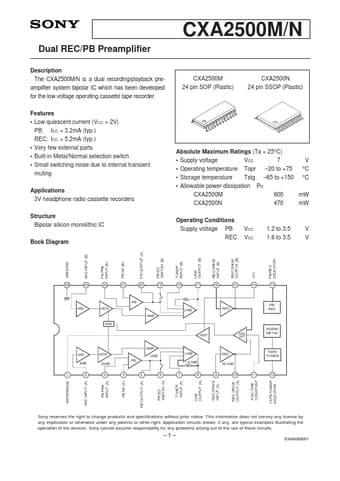

datasheet Preview Page 1 from Datasheet4u.com

CXA2500N_SonyCorporation.pdf

CXA2500N Datasheet Preview — Preview of CXA2500N PDF

Datasheet Details

Part number:

CXA2500N

Manufacturer:

Sony Corporation

File Size:

220.83 KB

Description:

Dual REC/PB Preamplifier

Features

* Low quiescent current (VCC = 2V) PB: ICC = 3.2mA (typ. ) REC: ICC = 5.2mA (typ. )
* Very few external parts
* Built-in Metal/Normal selection switch

Applications

* 3V headphone radio cassette recorders Structure Bipolar silicon monolithic IC Bock Diagram PB OUTPUT (A) MIC INPUT (B) PB EQ SWITCH (B) CXA2500M 24 pin SOP (Plastic) CXA2500N 24 pin SSOP (Plastic) Absolute Maximum Ratings (Ta = 25°C)
* Supply voltage VCC 7
* Operating temperature
