CXA2509AQ, Playback Equalizer Amplifier with Music Sensor

CXA2509AQ Playback Equalizer Amplifier with Music Sensor .
The CXA2509AQ is an IC designed for use in car stereo cassette decks.

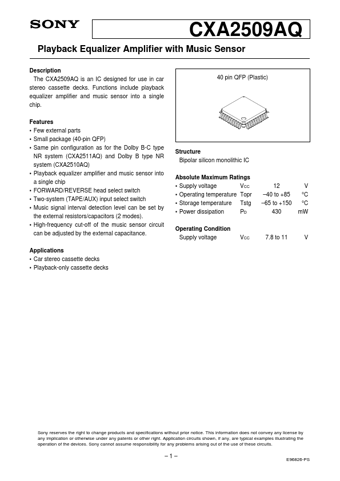

datasheet Preview Page 1 from Datasheet4u.com

CXA2509AQ_SonyCorporation.pdf

CXA2509AQ Datasheet Preview — Preview of CXA2509AQ PDF

Datasheet Details

Part number:

CXA2509AQ

Manufacturer:

Sony Corporation

File Size:

433.20 KB

Description:

Playback Equalizer Amplifier with Music Sensor

Features

* Few external parts
* Small package (40-pin QFP)
* Same pin configuration as for the Dolby B-C type NR system (CXA2511AQ) and Dolby B type NR system (CXA2510AQ)
* Playback equalizer amplifier and music sensor into a single chip
* FORWARD/REVERSE head select s

Applications

* Car stereo cassette decks
* Playback-only cassette decks 40 pin QFP (Plastic) Structure Bipolar silicon monolithic IC Absolute Maximum Ratings
* Supply voltage VCC
* Operating temperature Topr
* Storage temperature Tstg
* Power dissipation PD Operat
