CXA2503AR

Decoder/Driver/Timing Generator for Color LCD Panels

CXA2503AR Features

* Color LCD panels LCX005BK/BKB and LCX009AK/ AKB driver

* Supports NTSC and PAL systems

* Supports 16:9 wide display

* Supports composite inputs, Y/C inputs and Y/color difference inputs

* Serial interface circuit

* Electronic attenuators (D/A convert

CXA2503AR General Description

The CXA2503AR is an IC designed exclusively to drive color LCD panels LCX005BK/BKB and LCX009AK/AKB. This IC greatly reduces the number of circuits and parts required to drive LCD panels by incorporating RGB decoder functions for video signals, driver functions, and a timing generator for driving pa.

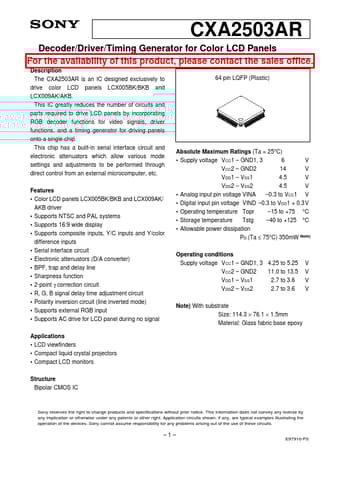

CXA2503AR Datasheet (1.88 MB)

Preview of CXA2503AR PDF

Datasheet Details

Part number:

CXA2503AR

Manufacturer:

Sony Corporation

File Size:

1.88 MB

Description:

Decoder/driver/timing generator for color lcd panels.
