CXA2513M

3-Band Preset Graphic Equalizer IC (with standby and memory on last preset mode)

CXA2513M Features

* Very few external parts

* 3-band monolithic filters (100Hz, 1kHz, 10kHz)

* The center frequencies of the band-pass filters can be adjusted

* 5 preset modes (FLAT, ROCK, VOCAL, POP, JAZZ)

* Equips with output ports to drive external LEDs

* Mute pulse

CXA2513M General Description

The CXA2513M is a 3-band preset graphic equalizer developed for stereo set, cassette tape recorder with radio, etc. It has 5 modes: FLAT, ROCK, VOCAL, POP and JAZZ. The selection is via 5 control pins. The center frequencies of three bands are 100Hz, 1kHz and 10kHz. The center frequencies of these b.

CXA2513M Datasheet (219.36 KB)

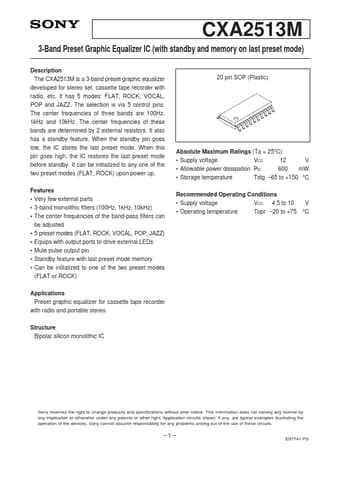

Preview of CXA2513M PDF
