CXA2534Q Datasheet - Sony Corporation

4-Channel CD Motor Driver

CXA2534Q Features

* 4 channels of H-bridge drivers

* PWM regulated power supply for H-bridge output stages

* Step-up DC to DC converter controller for system power supply

* Start and off controls with soft start capability

* Reset pulse

* Short circuit protect

CXA2534Q General Description

CXA2534Q is a 4-channel H-bridge motor driver IC designed for portable CD systems. It has a built-in DC to DC converter controller that allows voltage step-up to typically 3.2 V; this voltage can be used to power the system DSP, SSP and micro-controller. In addition, it also provides a PWM regulated.

CXA2534Q Datasheet (302.78 KB)

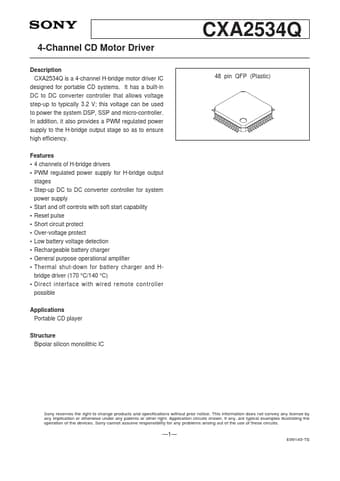

CXA2534Q Datasheet Preview — Preview of CXA2534Q PDF

Datasheet Details

Part number:

CXA2534Q

Manufacturer:

Sony Corporation

File Size:

302.78 KB

Description:

4-channel cd motor driver.
