CXA2596M Datasheet - Sony Corporation

CXA2596M, RF Amplifier for CD Players

CXA2596M RF Amplifier for CD Players .
The CXA2596M is an IC developed for compact disc players.

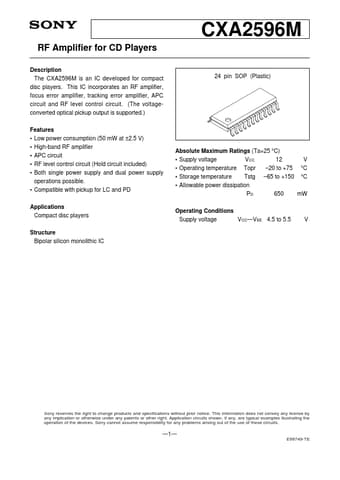

datasheet Preview Page 1 from Datasheet4u.com

CXA2596M_SonyCorporation.pdf

CXA2596M Datasheet Preview — Preview of CXA2596M PDF

Datasheet Details

Part number:

CXA2596M

Manufacturer:

Sony Corporation

File Size:

278.31 KB

Description:

RF Amplifier for CD Players

Features

* Low power consumption (50 mW at ±2.5 V)
* High-band RF amplifier
* APC circuit
* RF level control circuit (Hold circuit included)
* Both single power supply and dual power supply operations possible.

Applications

* Compact disc players Structure Bipolar silicon monolithic IC 24 pin SOP (Plastic) Absolute Maximum Ratings (Ta=25 °C)
* Supply voltage VCC 12 V
* Operating temperature Topr
* 20 to +75 °C
* Storage temperature Tstg
* 65 to +150 °C
* Allowable power diss
