CXD1170M - 6-bit 40MSPS High Speed D/A Converter

Datasheet Summary

Description

The CXD1170M is a 6-bit 40MHz high speed D/A converter.

The adoption of a current output system reduces power consumption to 80mW (200Ω load at 2Vp-p output).

This IC is suitable for digital TV and graphic display applications.

Features

  • Resolution 6-bit.
  • Max. conversion speed 40MSPS.
  • Non linearity error within ±0.1LSB.
  • Low glitch noise.
  • TTL CMOS compatible input.
  • +5V single power supply.
  • Low power consumption 80mW (200Ω load at 2Vp-p output) 24 pin SOP (Plastic) Structure Silicon gate CMOS IC Function 6-bit 40MHz D/A converter Block Diagram and Pin Configuration NC NC 1 2 24 DVDD 23 DVDD 22 AVDD.

📥 Download Datasheet

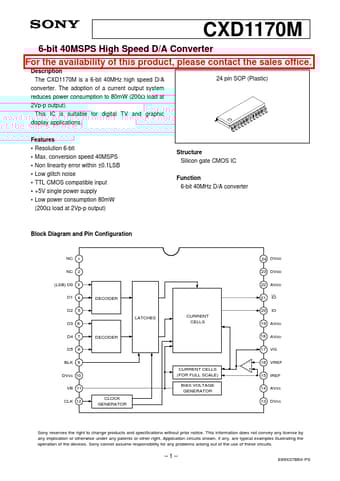

Datasheet preview – CXD1170M

Datasheet Details

Part number CXD1170M
Manufacturer Sony Corporation
File Size 145.68 KB
Description 6-bit 40MSPS High Speed D/A Converter
Datasheet download datasheet CXD1170M Datasheet
Additional preview pages of the CXD1170M datasheet.

📁 Similar Datasheet

  • CXD1132Q - CMOS Time Code Generator / Reader (ETC)
  • CXD1133Q-321 - CMOS 8 Bit Microcomputer (ETC)
  • CXD1151Q - Video Signal Processor (ETC)
  • CXD1156Q - (CXD1156Q/R) Timing Generator IC (Sony)
  • CXD1156R - (CXD1156Q/R) Timing Generator IC (Sony)
  • CXD1162P - Over Sampling Digital Filter LSI (Sony)
  • CXD101-106Q - CMOS Digital Delay Line (ETC)
  • CXD104-114Q - C-MOS MEMORY SEQUENCER (ETC)
  • CXD1088AQ - Over Sampling Digital Filter (Sony)
  • CXD1095AR - CMOS I/O Expander (ETC)
Other Datasheets by Sony Corporation
  • CXD1171M - 8-bit 40MSPS High Speed D/A Converter
  • CXD1171M - 8-bit 50MSPS Video A/D Converter with Clamp Function
  • CXD1172AM - 6-bit 20MSPS Video A/D Converter (CMOS)
  • CXD1172AP - 6-bit 20MSPS Video A/D Converter (CMOS)
  • CXD1175AM - 8-bit 20MSPS Video A/D Converter (CMOS)
  • CXD1175AP - 8-bit 20MSPS Video A/D Converter (CMOS)
  • CXD1176Q - 8-bit 20MSPS Video A/D Converter with Clamp Function
  • CXD1177Q - 8-bit 40MSPS YC 2-channel D/A Converter

Full PDF Text Transcription

Click to expand full text
CXD1170M 6-bit 40MSPS High Speed D/A Converter For the availability of this product, please contact the sales office. Description The CXD1170M is a 6-bit 40MHz high speed D/A converter. The adoption of a current output system reduces power consumption to 80mW (200Ω load at 2Vp-p output). This IC is suitable for digital TV and graphic display applications. Features • Resolution 6-bit • Max. conversion speed 40MSPS • Non linearity error within ±0.
