CXD1172AM - 6-bit 20MSPS Video A/D Converter (CMOS)

Datasheet Summary

Description

CXD1172AM/AP is a 6-bit CMOS A/D converter for video use.

The adoption of a 2-step parallel system achieves low consumption at a maximum conversion speed of 20MSPS minimum, 35MSPS typical.

Features

  • Resolution: 6-bit ± 1/2LSB.
  • Max. sampling frequency: 20MSPS.
  • Low power consumption: 40mW (at 20MSPS typ. ) (Reference current excluded).
  • Built-in sampling and hold circuit.
  • 3-state TTL compatible output.
  • Power supply: 5V single.
  • Low input capacitance: 4pF.
  • Reference impedance: 250Ω (typ. ).

📥 Download Datasheet

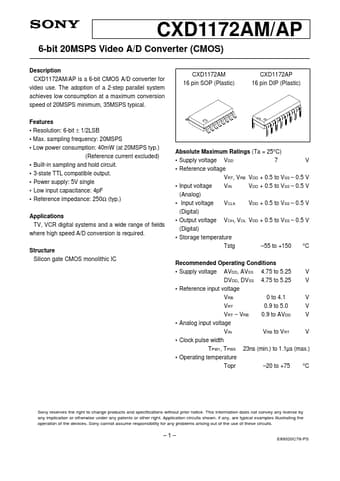

Datasheet preview – CXD1172AM

Datasheet Details

Part number CXD1172AM
Manufacturer Sony Corporation
File Size 364.32 KB
Description 6-bit 20MSPS Video A/D Converter (CMOS)
Datasheet download datasheet CXD1172AM Datasheet
Additional preview pages of the CXD1172AM datasheet.

📁 Similar Datasheet

  • CXD1132Q - CMOS Time Code Generator / Reader (ETC)
  • CXD1133Q-321 - CMOS 8 Bit Microcomputer (ETC)
  • CXD1151Q - Video Signal Processor (ETC)
  • CXD1156Q - (CXD1156Q/R) Timing Generator IC (Sony)
  • CXD1156R - (CXD1156Q/R) Timing Generator IC (Sony)
  • CXD1162P - Over Sampling Digital Filter LSI (Sony)
  • CXD101-106Q - CMOS Digital Delay Line (ETC)
  • CXD104-114Q - C-MOS MEMORY SEQUENCER (ETC)
  • CXD1088AQ - Over Sampling Digital Filter (Sony)
  • CXD1095AR - CMOS I/O Expander (ETC)
Other Datasheets by Sony Corporation
  • CXD1172AP - 6-bit 20MSPS Video A/D Converter (CMOS)
  • CXD1170M - 6-bit 40MSPS High Speed D/A Converter
  • CXD1171M - 8-bit 40MSPS High Speed D/A Converter
  • CXD1171M - 8-bit 50MSPS Video A/D Converter with Clamp Function
  • CXD1175AM - 8-bit 20MSPS Video A/D Converter (CMOS)
  • CXD1175AP - 8-bit 20MSPS Video A/D Converter (CMOS)
  • CXD1176Q - 8-bit 20MSPS Video A/D Converter with Clamp Function
  • CXD1177Q - 8-bit 40MSPS YC 2-channel D/A Converter

Full PDF Text Transcription

Click to expand full text
CXD1172AM/AP 6-bit 20MSPS Video A/D Converter (CMOS) Description CXD1172AM/AP is a 6-bit CMOS A/D converter for video use. The adoption of a 2-step parallel system achieves low consumption at a maximum conversion speed of 20MSPS minimum, 35MSPS typical. Features • Resolution: 6-bit ± 1/2LSB • Max. sampling frequency: 20MSPS • Low power consumption: 40mW (at 20MSPS typ.) (Reference current excluded) • Built-in sampling and hold circuit. • 3-state TTL compatible output. • Power supply: 5V single • Low input capacitance: 4pF • Reference impedance: 250Ω (typ.) Applications TV, VCR digital systems and a wide range of fields where high speed A/D conversion is required.
