CXD1172AP - 6-bit 20MSPS Video A/D Converter (CMOS)

CXD1172AP Description

CXD1172AM/AP 6-bit 20MSPS Video A/D Converter (CMOS) .
CXD1172AM/AP is a 6-bit CMOS A/D converter for video use.

CXD1172AP Features

* Resolution: 6-bit ± 1/2LSB
* Max. sampling frequency: 20MSPS
* Low power consumption: 40mW (at 20MSPS typ. ) (Reference current excluded)
* Built-in sampling and hold circuit.
* 3-state TTL compatible output.
* Power supply: 5V single
* Low in

CXD1172AP Applications

* TV, VCR digital systems and a wide range of fields where high speed A/D conversion is required. Structure Silicon gate CMOS monolithic IC CXD1172AM 16 pin SOP (Plastic) CXD1172AP 16 pin DIP (Plastic) Absolute Maximum Ratings (Ta = 25°C) 7 V
* Supply voltage VDD
* Reference voltage V

📥 Download Datasheet

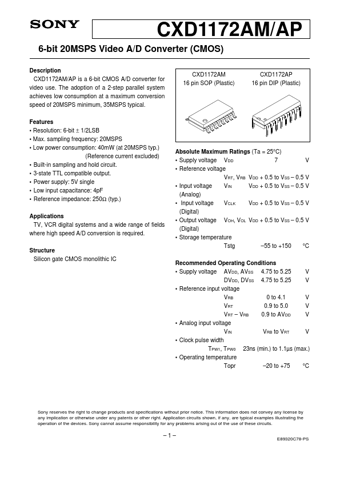

Preview of CXD1172AP PDF
