CXD1217M Synchronizing Signal Generator for Video Camera

Sony Corporation

CXD1217M Description

CXD1217M Synchronizing Signal Generator for Video Camera .
The CXD1217M is a synchronizing signal generator for color video cameras. Compatible with the respective systems, NTSC, PALM, PAL a.

CXD1217M Features

* Compatible with the respective systems, NTSC, PALM, PAL and SECAM
* Output is synchronized with the clock of 910fH or 908fH
* 25Hz offset processing by PAL system
* Color framing by the respective systems, NTSC, PALM and PAL
* Possible external synchronizati

CXD1217M Applications

* Synchronizing signal generator for color video cameras Structure Silicon gate CMOS IC Absolute Maximum Ratings (Ta = 25°C)
* Supply voltage VDD VSS
* 0.5 to +7.0 V
* Input voltage VI VSS
* 0.5 to VDD + 0.5 V
* Output voltage VO VSS
* 0.5 to VDD + 0.5 V

📥 Download Datasheet

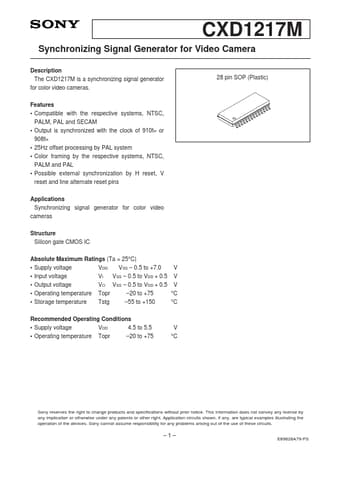

CXD1217M Datasheet Preview — Preview of CXD1217M PDF

Datasheet Details

Part number: CXD1217M
Manufacturer: Sony Corporation
File Size: 154.51 KB
Datasheet: CXD1217M_SonyCorporation.pdf
Description: Synchronizing Signal Generator for Video Camera
