CXD3504R

Color Shading Correction IC for Liquid Crystal Projectors

CXD3504R Features

* Supports dot and line inverted drive of liquid crystal panels for Sony projectors

* Three built-in 10-bit × 1200-word 1H delay lines

* Data path with or without a 1H delay can be selected by the control pins. Applications LCD projectors, etc. Structure Silicon gate CMOS IC

CXD3504R General Description

The CXD3504R is a selective delay line IC for performing signal processing during dot and line inverted drive of liquid crystal panels for Sony projectors. This chip has three built-in 10-bit × 1200-word 1H delay lines, and data path with or without a 1H delay can be selected by the control pins. Fe.

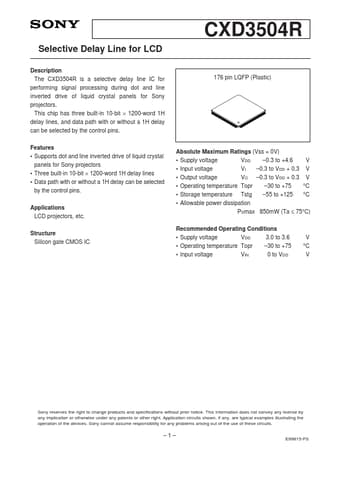

CXD3504R Datasheet (279.74 KB)

Preview of CXD3504R PDF

Datasheet Details

Part number:

CXD3504R

Manufacturer:

Sony Corporation

File Size:

279.74 KB

Description:

Color shading correction ic for liquid crystal projectors.
