CXG1015N - Power Amplifier/Antenna Switch for PHS

Datasheet Summary

Description

The CXG1015N is a power amplifier/antenna switch MMIC for PHS.

This is designed using the Sony’s GaAs J-FET process and operates at a single positive power supply.

Features

  • Single positive power supply 3.0 V.
  • Output power 20.2 dBm (Antenna switch transfer output pin power).
  • Low current consumption 160 mA (Output power of 20.2 dBm).
  • High power gain 39 dB Typ. (Output power of 20.2 dBm).
  • Low insertion loss 0.5 dB Typ.
  • Small mold package 20-pin SSOP (Pin interval of 0.5 mm pitch) Structure GaAs J-FET MMIC.

📥 Download Datasheet

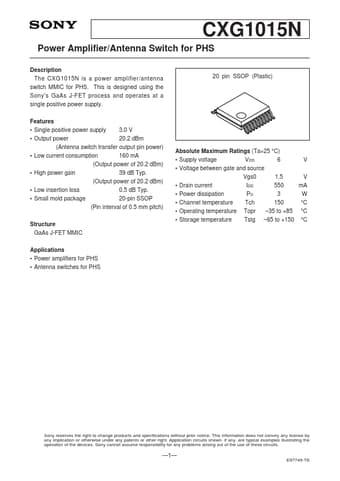

Datasheet preview – CXG1015N
