CXP83513 - CMOS 8-bit Single Chip Microcomputer

Sony Corporation

The CXP83513 by Sony Corporation is a CMOS 8-bit Single Chip Microcomputer. Below is the official datasheet preview.

📥 Download Datasheet

CXP83513 CMOS 8-bit Single Chip Microcomputer by Sony Corporation - Datasheet Preview — Official preview page of the **CXP83513** CMOS 8-bit Single Chip Microcomputer datasheet (Sony Corporation).

Datasheet Details

Part number	CXP83513
Manufacturer	Sony Corporation
File Size	425.08 KB
Description	CMOS 8-bit Single Chip Microcomputer
Datasheet	CXP83513_SonyCorporation.pdf

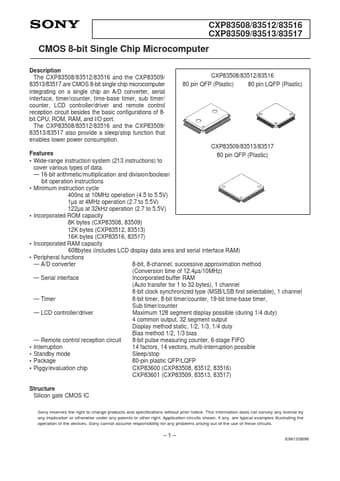

Additional preview pages of the CXP83513 datasheet.

CXP83513 Product details

Description

The CXP83508/83512/83516 and the CXP83509/ 83513/83517 are CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time-base timer, sub timer/ counter, LCD controller/driver and remote control reception circuit besides the basic configurations of 8bit CPU, ROM, RAM, and I/O port.

Features

80 pin QFP (Plastic).
Wide-range instruction system (213 instructions) to cover various types of data.
16-bit arithmetic/multiplication and division/boolean bit operation instructions.
Minimum instruction cycle 400ns at 10MHz operation (4.5 to 5.5V) 1µs at 4MHz operation (2.7 to 5.5V) 122µs at 32kHz operation (2.7 to 5.5V).
Incorporated ROM capacity 8K bytes (CXP83508, 83509) 12K bytes (CXP83512, 83513) 16K bytes (CXP83516, 83517).
Incorporated RAM c.
