CXP83517

CMOS 8-bit Single Chip Microcomputer

Sony Corporation

CXP83517 Features

* 80 pin QFP (Plastic)

* Wide-range instruction system (213 instructions) to cover various types of data.

* 16-bit arithmetic/multiplication and division/boolean bit operation instructions

* Minimum instruction cycle 400ns at 10MHz operation (4.5 to 5.5V) 1µs at 4MHz operation

CXP83517 General Description

The CXP83508/83512/83516 and the CXP83509/ 83513/83517 are CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time-base timer, sub timer/ counter, LCD controller/driver and remote control reception circuit besides the basic configurat.

CXP83517 Datasheet (425.08 KB)

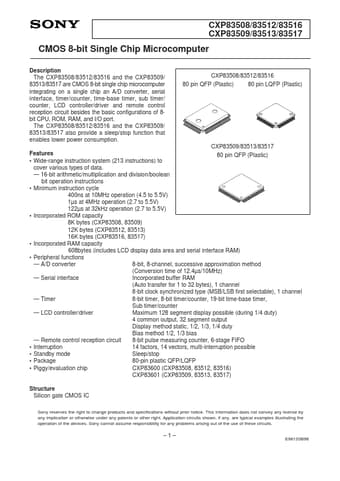

CXP83517 Datasheet Preview — Preview of CXP83517 PDF

Datasheet Details

Part number:

CXP83517

Manufacturer:

Sony Corporation

File Size:

425.08 KB

Description:

Cmos 8-bit single chip microcomputer.
