ICX069AL, CCD Image Sensor

www.DataSheet4U.com ICX069AL Diagonal 4.5mm (Type 1/4) CCD Image Sensor for CCIR B/W Video Cameras .
The ICX069AL is an interline CCD solid-state image sensor suitable for CCIR black-and-white video cameras.

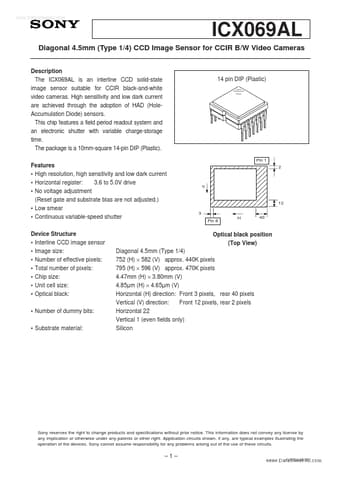

datasheet Preview Page 1 from Datasheet4u.com

ICX069AL_SonyCorporation.pdf

ICX069AL Datasheet Preview — Preview of ICX069AL PDF

Datasheet Details

Part number:

ICX069AL

Manufacturer:

Sony Corporation

File Size:

269.43 KB

Description:

CCD Image Sensor

Features

* a field period readout system and an electronic shutter with variable charge-storage time. The package is a 10mm-square 14-pin DIP (Plastic). Features
* High resolution, high sensitivity and low dark current
* Horizontal register: 3.6 to 5.0V drive
* No voltage adjustment (Re
