ILX551B - CCD Linear Sensor

Sony Corporation

📥 Download Datasheet

ILX551B Datasheet Preview — Preview of ILX551B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX551B
Manufacturer	Sony Corporation
File Size	118.01 KB
Description	CCD Linear Sensor
Datasheet	ILX551B_SonyCorporation.pdf

ILX551B Product details

Description

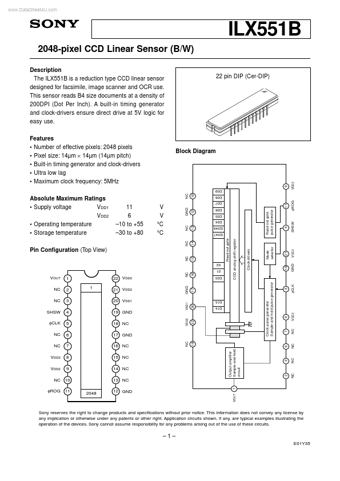

The ILX551B is a reduction type CCD linear sensor designed for facsimile, image scanner and OCR use.

Features

Number of effective pixels: 2048 pixels.
Pixel size: 14µm × 14µm (14µm pitch).
Built-in timing generator and clock-drivers.
Ultra low lag.
Maximum clock frequency: 5MHz Absolute Maximum Ratings.
Supply voltage VDD1 VDD2.
Operating temperature.
Storage temperature Pin Configuration (Top View) NC 15 S2 22 pin DIP (Cer-DIP) Block Diagram NC 10 Read out gate pulse generator 12 Read out gate CCD analog shift register NC.
