ILX554B - 2048-pixel CCD Linear Sensor

Sony

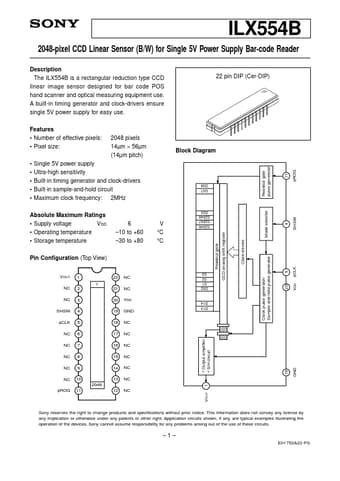

ILX554B Datasheet Preview — Preview of ILX554B PDF

Datasheet Details

Part number	ILX554B
Manufacturer	Sony
File Size	104.29 KB
Description	2048-pixel CCD Linear Sensor
Datasheet	ILX554B-Sony.pdf

ILX554B Product details

Description

The ILX554B is a rectangular reduction type CCD linear image sensor designed for bar code POS hand scanner and optical measuring equipment use.A built-in timing generator and clock-drivers ensure single 5V power supply for easy use.22 pin DIP (Cer-DIP)

Features

Number of effective pixels: 2048 pixels.
Pixel size: 14µm × 56µm (14µm pitch).
Single 5V power supply.
Ultra-high sensitivity.
Built-in timing generator and clock-drivers.
Built-in sample-and-hold circuit.
Maximum clock frequency: 2MHz Block Diagram Mode selector Absolute Maximum Ratings.
Supply voltage VDD.
Operating temperature.
Storage temperature 6.
10 to +60.
30 to +80.
