ILX505A - 2592-pixel CCD Linear Image Sensor

Sony Corporation

📥 Download Datasheet

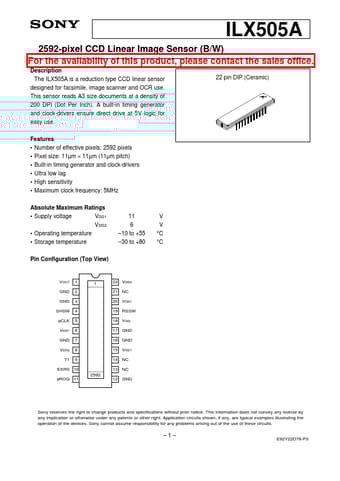

ILX505A Datasheet Preview — Preview of ILX505A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX505A
Manufacturer	Sony Corporation
File Size	144.47 KB
Description	2592-pixel CCD Linear Image Sensor
Datasheet	ILX505A_SonyCorporation.pdf

ILX505A Product details

Description

The ILX505A is a reduction type CCD linear sensor designed for facsimile, image scanner and OCR use.

Features

Number of effective pixels: 2592 pixels.
Pixel size: 11µm × 11µm (11µm pitch).
Built-in timing generator and clock-drivers.
Ultra low lag.
High sensitivity.
Maximum clock frequency: 5MHz Absolute Maximum Ratings.
Supply voltage VDD1 VDD2.
Operating temperature.
Storage temperature Pin Configuration (Top View) 22 pin DIP (Ceramic) 11 6.
10 to +55.
30 to +80 V V °C °C VOUT GND GND SHSW φCLK VDD1 GN.
