ILX207DW Interface IC of data serial transfer

Pin number 01 Pin name Transmitter data output (levels RS * 232) 02 Transmitter data output (levels RS * 232) 03 Transmitter data output (levels RS * 232) 04 Receiver data input (levels RS * 232) 05 Receiver data output (levels TTL/CMOS) 06 Transmitter data inp.

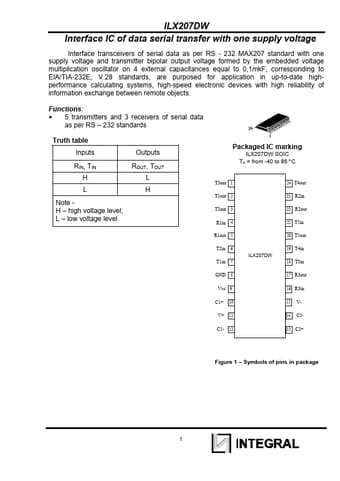

ILX207DW Interface IC of data serial transfer with one supply voltage Interface transceivers of serial data as per RS - 232 MAX207 standard with one supply voltage and transmitter bipolar output voltage formed by the embedded voltage multiplication oscillator on 4 external capacitances equal to 0,1mkF, corresponding to EIA/TIA-232E, V.28 standards, are purposed for application in up-to-date highperformance calculating systems, high-speed electronic devices with high reliability of information e.
