ILX3221 - Interface Transceiver of the Serial Data of RS-232 Standard

IK Semiconductor

📥 Download Datasheet

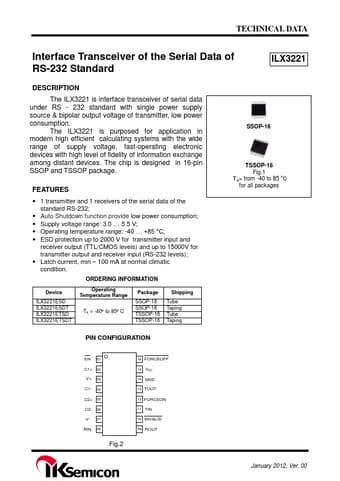

ILX3221 Datasheet Preview — Preview of ILX3221 PDF

Datasheet Details

Part number: ILX3221
Manufacturer: IK Semiconductor
File Size: 276.24 KB
Datasheet: ILX3221-IKSemiconductor.pdf
Description: Interface Transceiver of the Serial Data of RS-232 Standard

ILX3221 Product details

Description

The ILX3221 is interface transceiver of serial data under RS - 232 standard with single power supply source & bipolar output voltage of transmitter, low power consumption.

Features

1 transmitter and 1 receivers of the serial data of the standard RS-232;.
Auto Shutdown function provide low power consumption;.
Supply voltage range: 3.0 … 5.5 V;.
Operating temperature range: -40 … +85 °С;.
ESD protection up to 2000 V for transmitter input and receiver output (TTL/CMOS levels) and up to 15000V for transmitter output and receiver input (RS-232 levels);.
Latch current, min.
100 mA at normal climatic condition. ORD.
