ILX3221N INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS-232

table Pin number Symbol Pin description 01 En Receiver enable control input 02 C1+ Positive terminal of the voltage multiplier charge-pump capacitor 03 V+ Positive voltage multiplier output 04 C1- Negative terminal of the voltage multiplier charge-pump capacitor 05 C2+ Positive terminal of t.

ILX3221N MICROCIRCUIT ILX3221N INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS -232 (compatible to MAX3221 (MAXIM USA) Microcircuits ILX3221 is interface transceiver of serial data under RS - 232 standard with single power supply source & bipolar output voltage of transmitter, forming by build-in voltage multiplier on 4 external capacities, 0.1 µF. ILX3221 correspond to EIA/TIA-232E, V.28 standard and is purposed for application in modern high efficient calculating systems with th.

ILX3221N Features

* LHT tHL 0.9 1,5 V 0.1 tPHLT, tPLHT ILX3221N 3V 0V UOH 1,5V 1,5 V Transmitter output & input signals time diagram UOL tHL tLH TIN 0.9 0.9 3 V 0.1 0.1 t SLH t SHL +3 V +3 V 0V UOH TOUT -3 V -3 V U OL Transmitter output &

ILX3221N Datasheet (147.87 KB)

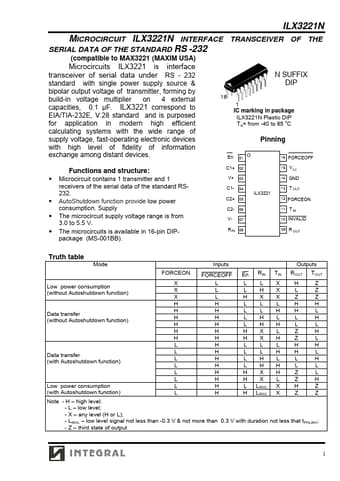

ILX3221N Datasheet Preview — Preview of ILX3221N PDF

Datasheet Details

Part number:

ILX3221N

Manufacturer:

Integral

File Size:

147.87 KB

Description:

Interface transceiver of the serial data of the standard rs-232.
