ILX3483N - Transmitter Receiver

Integral

📥 Download Datasheet

ILX3483N Datasheet Preview — Preview of ILX3483N PDF

Datasheet Details

Part number: ILX3483N
Manufacturer: Integral
File Size: 145.29 KB
Datasheet: ILX3483N-Integral.pdf
Description: Transmitter Receiver

ILX3483N Product details

Description

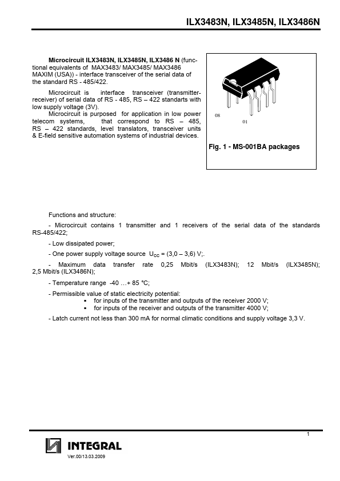

Pin number Symbol 01 RO 02 RE 03 DE 04 DI 05 GND 06 A 07 B 08 VCC Description Receiver output Receiver output enable pin Transmitter output enable pin Transmitter input Common pin Receiver/transmitter uncomplemented I/O pin Receiver/transmitter complemented I/O pin Supply voltage pin Ver.00/13.03.2009 2 www.bms.by ILX3483N, ILX3485N, ILX3486N R RO RE DE D DI B A Vcc - (08) GND - (05) Fig.3 Block diagram Table 2 Transmitter truth table Inputs RE DE Н or

Features

ower output stage for case of occurrence of a strong disturbation in a line. At voltage increase in a line load capaci.
