ILX3485

Slew-Rate-Limited RS-485/RS-422 Transceivers

ILX3485 Features

* Low Quiescent Current: 300µA

* -7V to +12V Common-Mode Input Voltage Range

* Three-State Outputs

* 80ns Propagation Delays, 5ns Skew

* Half-Duplex Versions Available

* Operate from a Single 3.3V Supply

* Allows up to 32 Transceivers on the Bus

* Data rate: 5 Mbps

ILX3485 General Description

The ILX3485 is low-power transceivers for RS-485 and RS- 422 communication. IC contains one driver and one receiver. The driver slew rates of the ILX3485 is not limited, allowing them to transmit up to 5Mbps. These transceivers draw between 120µA and 500µA of supply current when unloaded or fully lo.

ILX3485 Datasheet (442.88 KB)

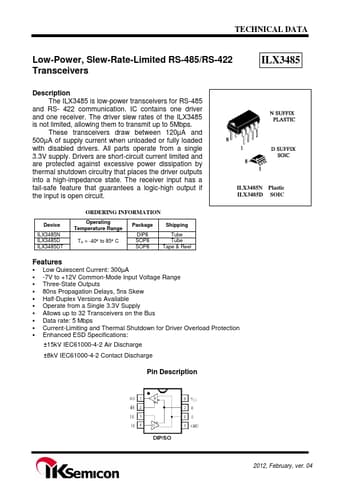

Preview of ILX3485 PDF

Datasheet Details

Part number:

ILX3485

Manufacturer:

IK Semiconductor

File Size:

442.88 KB

Description:

Slew-rate-limited rs-485/rs-422 transceivers.
