ILX3085

Interface Transceiver

ILX3085 Features

* 1 transmitter and 1 receivers of the serial data of the standard RS-485

* Auto Shutdown function provide low power consumption

* Supply voltage range: 5.0V  5%

* Operating temperature range: -40 ~ +85 °С

* ESD protection up to 2 000V for transmitter input and receiver output (

ILX3085 General Description

The ILX3085 is interface transceiver of serial data under RS - 485 standard with low power consumption. The ILX3085 is purposed for application in telecom systems under RS485/RS422 standards with low power dissipation, translators of the level, transceiving devices sensitive to electromagnetic radia.

ILX3085 Datasheet (274.04 KB)

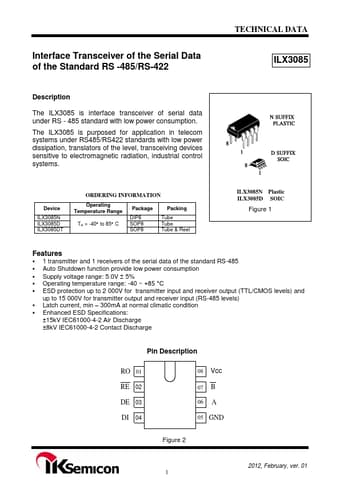

Preview of ILX3085 PDF

Datasheet Details

Part number:

ILX3085

Manufacturer:

IK Semiconductor

File Size:

274.04 KB

Description:

Interface transceiver.
