ILX3485

INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS-485

ILX3485 General Description

table Pin number Pin description 01 Receiver output 02 Receiver output enable pin (Low level) 03 Transmitter output enable pin 04 Transmitter input 05 Common pin 06 Receiver/transmitter uncomplemented I/O pin 07 Receiver/transmitter complemented I/O pin 08 Supply voltage pin Symbol RO RE .

ILX3485 Datasheet (180.63 KB)

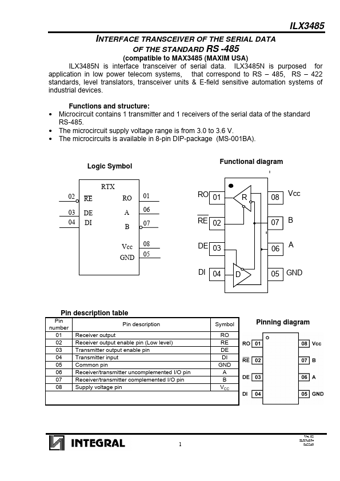

Preview of ILX3485 PDF

Datasheet Details

Part number:

ILX3485

Manufacturer:

Integral

File Size:

180.63 KB

Description:

Interface transceiver of the serial data of the standard rs-485.
ILX3485 INTERFACE TRANSCEIVER OF THE SERIAL DATA OF THE STANDARD RS -485 (compatible to MAX3485 (MAXIM USA) ILX3485N is interface transceiver of seria.
