ILX511 - 2048-pixel CCD Linear Image Sensor

Sony Corporation

Datasheet Details

Part number	ILX511
Manufacturer	Sony Corporation
File Size	145.66 KB
Description	2048-pixel CCD Linear Image Sensor
Datasheet	ILX511_SonyCorporation.pdf

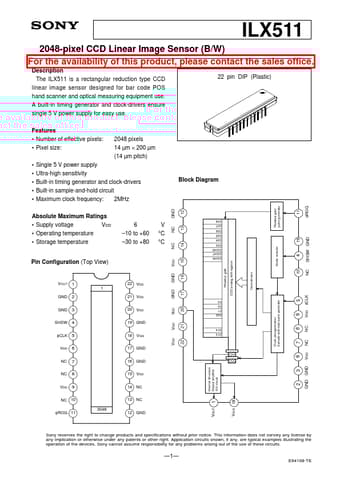

The ILX511 is a rectangular reduction type CCD linear image sensor designed for bar code POS hand scanner and optical measuring equipment use.

Number of effective pixels:.
Pixel size:.
22 pin DIP (Plastic) 2048 pixels 14 µm × 200 µm (14 µm pitch) Single 5 V power supply Ultra-high sensitivity Built-in timing generator and clock-drivers Built-in sample-and-hold circuit Maximum clock frequency: 2MHz GND Block Diagram Readout gate pulse generator NC 13 Mode selector CCD analog shift register Pin Configuration (Top View) VDD 15 Readout gate 10 Clock plse gener.
