ILX516K - 3648 X 3pixel CCD Linear Sensor

Sony Corporation

📥 Download Datasheet

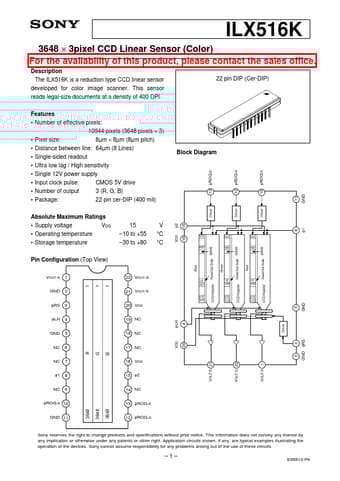

ILX516K Datasheet Preview — Preview of ILX516K PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX516K
Manufacturer	Sony Corporation
File Size	132.01 KB
Description	3648 X 3pixel CCD Linear Sensor
Datasheet	ILX516K_SonyCorporation.pdf

ILX516K Product details

Description

The ILX516K is a reduction type CCD linear sensor developed for color image scanner.

Features

Number of effective pixels: 10944 pixels (3648 pixels × 3).
Pixel size: 8µm × 8µm (8µm pitch).
Distance between line: 64µm (8 Lines).
Single-sided readout.
Ultra low lag / High sensitivity.
Single 12V power supply.
Input clock pulse: CMOS 5V drive.
Number of output 3 (R, G, B).
Package: 22 pin cer-DIP (400 mil) Absolute Maximum Ratings.
Supply voltage VDD.
Operating temperature.
Storage t.
