ILX508A

7926-pixel CCD Linear Image Sensor

Sony Corporation

ILX508A Features

* Number of effective pixels: 7926 pixels

* Pixel size: 7µm × 7µm (7µm pitch)

* Built-in timing generator and clock-drivers

* Ultra high sensitivity

* Ultra low lag/low dark voltage

* Output method

* Maximum operating frequency: 12.5MHz Absolut

ILX508A General Description

The ILX508A is a reduction type CCD linear sensor developed for high resolution copiers. This sensor reads A3-size documents at a density of 600 DPI (Dot Per Inch). A built-in timing generator and clock-drivers ensure direct drive at 5V logic for easy use. In addition reset pulse can switch between .

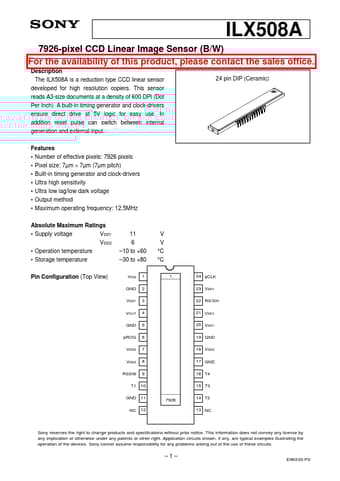

ILX508A Datasheet (154.73 KB)

ILX508A Datasheet Preview — Preview of ILX508A PDF

Datasheet Details

Part number:

ILX508A

Manufacturer:

Sony Corporation

File Size:

154.73 KB

Description:

7926-pixel ccd linear image sensor.
