SLD1121VS Datasheet - Sony Corporation

SLD1121VS, 5mW Visible Laser Diode

SLD1121VS 5mW Visible Laser Diode .
The SLD1121VS is a red laser diode designed for bar code readers and measuring instruments.

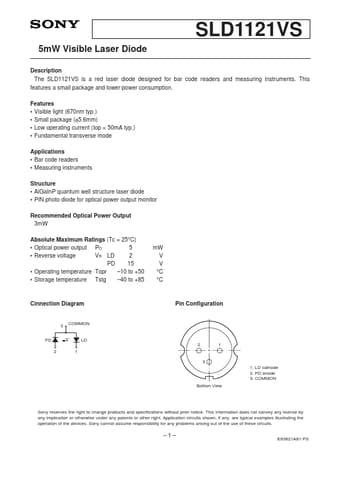

datasheet Preview Page 1 from Datasheet4u.com

SLD1121VS_SonyCorporation.pdf

SLD1121VS Datasheet Preview — Preview of SLD1121VS PDF

Datasheet Details

Part number:

SLD1121VS

Manufacturer:

Sony Corporation

File Size:

51.63 KB

Description:

5mW Visible Laser Diode

Features

* a small package and lower power consumption. Features
* Visible light (670nm typ. )
* Small package (φ5.6mm)
* Low operating current (Iop = 50mA typ. )

Applications

* Bar code readers
* Measuring instruments Structure
* AlGaInP quantum well structure laser diode
* PIN photo diode for optical power output monitor Recommended Optical Power Output 3mW Absolute Maximum Ratings (Tc = 25°C)
* Optical power output PO 5
