SLD3236VF - Laser Diode

Datasheet Summary

Features

  • Optical Output Power: 150mW Pulse350mw.
  • Can Type: φ 5.6 mm with Photo Diode.
  • Peak Wavelength: 405nm Absolute Maximum Ratings Item Symbol Optical Output Power LD Reverse Voltage PD Reverse Voltage Storage Temperature Operating Case Temperature Po Vr (LD) Vr (PD) Tstg Tc Absolute Maximum Ratings 150 3.6 5.3 -40 ~ 85 -10 ~ 80 (Tc=25°C) Unit mW V V °C °C Outline Dimension Unit (mm) 5.6 Φ ( 1.6) +-00.03 Φ (90°) Emitting Point (0.4) 1.0±0.1 0.4±0.1 0.25±0.03 G.

📥 Download Datasheet

Datasheet preview – SLD3236VF

Datasheet Details

Part number SLD3236VF
Manufacturer Sony Corporation
File Size 127.50 KB
Description Laser Diode
Datasheet download datasheet SLD3236VF Datasheet
Additional preview pages of the SLD3236VF datasheet.

📁 Similar Datasheet

  • SLD30-018 - TVS Diodes (Littelfuse)
  • SLD3091FZ - 30 Watt Discrete LDMOS FET (Sirenza Microdevices)
  • SLD30A - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD30CA - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD30L03A - N- and P-Channel MOSFET (Msemitek)
  • SLD30U-017 - TVS Diodes (Littelfuse)
  • SLD33-018 - TVS Diodes (Littelfuse)
  • SLD33A - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD33CA - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD33U-017 - TVS Diodes (Littelfuse)
Other Datasheets by Sony Corporation
  • SLD3237VF - 400 mW Output Blue-Violet Semiconductor Laser Diodes
  • SLD3237VFR - 400 mW Output Blue-Violet Semiconductor Laser Diodes
  • SLD323V - High Power Density 1W Laser Diode
  • SLD323XT - 1W High Power Laser Diode
  • SLD322V - High Power Density 0.5W Laser Diode
  • SLD322XT - 0.5W High Power Laser Diode
  • SLD324ZT - High-Power Density 2W Laser Diode
  • SLD326YT - 4W High Power Laser Diode

Full PDF Text Transcription

Click to expand full text

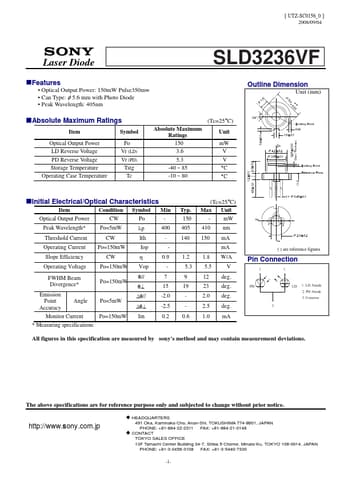

[ UTZ-SC0156_0 ] 2008/09/04 Laser Diode SLD3236VF Features • Optical Output Power: 150mW Pulse350mw • Can Type: φ 5.6 mm with Photo Diode • Peak Wavelength: 405nm Absolute Maximum Ratings Item Symbol Optical Output Power LD Reverse Voltage PD Reverse Voltage Storage Temperature Operating Case Temperature Po Vr (LD) Vr (PD) Tstg Tc Absolute Maximum Ratings 150 3.6 5.3 -40 ~ 85 -10 ~ 80 (Tc=25°C) Unit mW V V °C °C Outline Dimension Unit (mm) 5.6 Φ ( 1.6) +-00.03 Φ (90°) Emitting Point (0.4) 1.0±0.1 0.4±0.1 0.25±0.03 Glass Thickness Z+ Φ 4.2±0.2 Φ 3.55±0.1 Emitting Point Reference Plane 2.3±0.2 1.2±0.1 (1.3) 6.5±1.
