SLD323XT - 1W High Power Laser Diode

Description

The SLD323XT is a high power, gain-guided laser diode produced by MOCVD method∗1.

Compared to the SLD300 Series, this laser diode has a high brightness output with a doubled optical density which can be achived by QW-SCH structure∗2.

Features

  • High power Recommended optical power output: Po = 1.0W.
  • Low operating current: Iop = 1.4A (Po = 1.0W).
  • Flat package with built-in photo diode, TE cooler, and thermistor.

📥 Download Datasheet

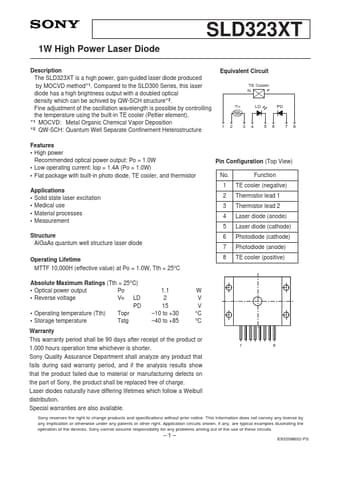

Datasheet preview – SLD323XT

📁 Similar Datasheet

  • SLD30-018 - TVS Diodes (Littelfuse)
  • SLD3091FZ - 30 Watt Discrete LDMOS FET (Sirenza Microdevices)
  • SLD30A - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD30CA - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD30L03A - N- and P-Channel MOSFET (Msemitek)
  • SLD30U-017 - TVS Diodes (Littelfuse)
  • SLD33-018 - TVS Diodes (Littelfuse)
  • SLD33A - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD33CA - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD33U-017 - TVS Diodes (Littelfuse)
Other Datasheets by Sony Corporation
  • SLD3236VF - Laser Diode
  • SLD3237VF - 400 mW Output Blue-Violet Semiconductor Laser Diodes
  • SLD3237VFR - 400 mW Output Blue-Violet Semiconductor Laser Diodes
  • SLD323V - High Power Density 1W Laser Diode
  • SLD322V - High Power Density 0.5W Laser Diode
  • SLD322XT - 0.5W High Power Laser Diode
  • SLD324ZT - High-Power Density 2W Laser Diode
  • SLD326YT - 4W High Power Laser Diode

Full PDF Text Transcription

Click to expand full text
SLD323XT 1W High Power Laser Diode Description The SLD323XT is a high power, gain-guided laser diode produced by MOCVD method∗1. Compared to the SLD300 Series, this laser diode has a high brightness output with a doubled optical density which can be achived by QW-SCH structure∗2. Fine adjustment of the oscillation wavelength is possible by controlling the temperature using the built-in TE cooler (Peltier element). ∗1 MOCVD: Metal Organic Chemical Vapor Deposition ∗2 QW-SCH: Quantum Well Separate Confinement Heterostructure Features • High power Recommended optical power output: Po = 1.0W • Low operating current: Iop = 1.4A (Po = 1.
