GDM-4011P Datasheet - Sony

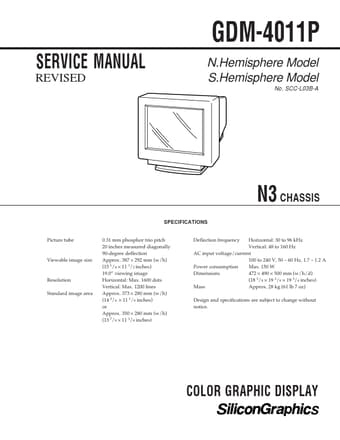

GDM-4011P - COLOR GRAPHIC DISPLAY SERVICE MANUAL

GDM-4011P SERVICE MANUAL REVISED N.Hemisphere Model S.Hemisphere Model No.

SCC-L03B-A N3 CHASSIS SPECIFICATIONS Picture tube Viewable image size Resolution Standard image area 0.31 mm phosphor trio pitch 20 inches measured diagonally 90-degree deflection Approx.

387 × 292 mm (w/h) (15 1/4 × 11 1/2 inches) 19.0” viewing image Horizontal: Max.

1600 dots Vertical: Max.

1200 lines Approx.

373 × 280 mm (w/h) (14 3/4 × 11 1/8 inches) or Approx.

350 × 280 mm (w/h) (13 7/8 × 11 1/8 inches) Deflec

GDM-4011P-Sony.pdf

Preview of GDM-4011P PDF
GDM-4011P Datasheet Preview Page 2 GDM-4011P Datasheet Preview Page 3

Datasheet Details

Part number:

GDM-4011P

Manufacturer:

Sony

File Size:

4.73 MB

Description:

Color graphic display service manual.
