HCD-XB600 (HCD-D690/XB6/XB600) SERVICE MANUAL

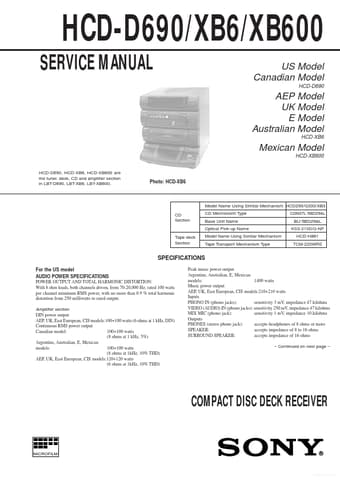

HCD-D690/XB6/XB600 SERVICE MANUAL US Model Canadian Model HCD-D690 AEP Model UK Model E Model Australian Model HCD-XB6 Mexican Model HCD-XB600 HCD-D690, HCD-XB6, HCD-XB600 are the tuner, deck, CD and amplifier section in LBT-D690, LBT-XB6, LBT-XB600. Photo: HCD-XB6 Model Name Using Similar Mechanism HCD290/G330/XB3 CD Section CD Mechanism Type Base Unit Name Optical Pick-up Name Tape deck Section Model Name Using Similar Mechanism Tape Transport Mechanism Type CDM37L-5BD29AL BU-5BD29AL KSS-2.

HCD-XB600 Features

* Additional Information 5 8 12 14 15 16 18 21 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing
