ICX224AK

CCD Image Sensor

ICX224AK Features

* an electronic shutter with variable charge-storage time. Adoption of a design specially suited for frame readout ensures a saturation signal level equivalent to when using field readout. Ye, Cy, Mg, G complementary color mosaic filters are used as the color filters, and at the same time high sensiti

ICX224AK General Description

The ICX224AK is a diagonal 8mm (Type 1/2) interline CCD solid-state image sensor with a square pixel array and 2.02M effective pixels. Frame readout allows all pixels' signals to be output independently within approximately 1/7.5 second. Also, the adoption of high frame rate readout mode supports 30.

ICX224AK Datasheet (388.62 KB)

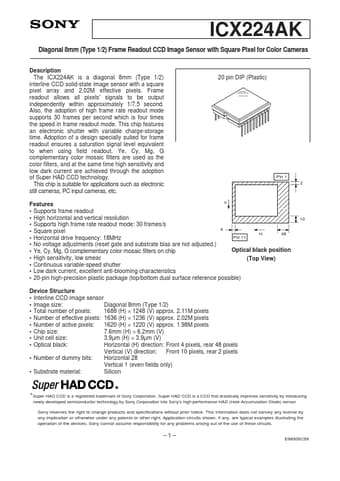

Preview of ICX224AK PDF

Datasheet Details

Part number:

ICX224AK

Manufacturer:

Sony

File Size:

388.62 KB

Description:

Ccd image sensor.
