ICX226AK

CCD Image Sensor

ICX226AK Features

* a field period readout system and an electronic shutter with variable charge-storage time. The package is a 10mm-square 14-pin DIP (Plastic). Features ‹ Low smear (

* 105dB Typ. at F5.6) ‹ Low power consumption (

* 34% compared with ICX206AK) ‹ High sensitivity (+2.5dB at F1.2 compared w

ICX226AK General Description

The ICX226AK is an interline CCD solid-state image sensor suitable for NTSC color video cameras. Compared with the current product ICX206AK, smear charactristics are improved drastically and power consumption is reduced. Ye, Cy, Mg, and G complementary color mosaic filters are used. High sensitivity.

ICX226AK Datasheet (303.32 KB)

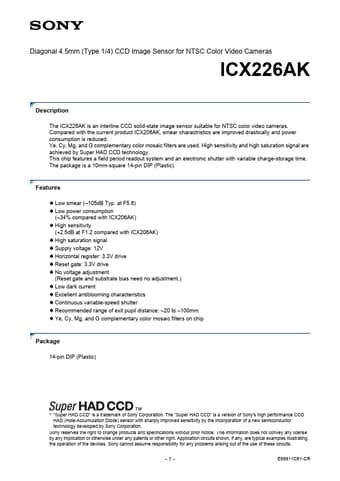

Preview of ICX226AK PDF

Datasheet Details

Part number:

ICX226AK

Manufacturer:

Sony

File Size:

303.32 KB

Description:

Ccd image sensor.
