ICX224AQF

CCD Image Sensor

ICX224AQF Features

* an electronic shutter with variable charge-storage time. Adoption of a design specially suited for frame readout ensures a saturation signal level equivalent to when using field readout. High resolution and high color reproductivity are achieved through the use of R, G, B primary color mosaic filter

ICX224AQF General Description

The ICX224AQF is a diagonal 8mm (Type 1/2) interline CCD solid-state image sensor with a square pixel array and 2.02M effective pixels. Frame readout allows all pixels' signals to be output independently within approximately 1/7.5 second. Also, the adoption of high frame rate readout mode supports 3.

ICX224AQF Datasheet (379.53 KB)

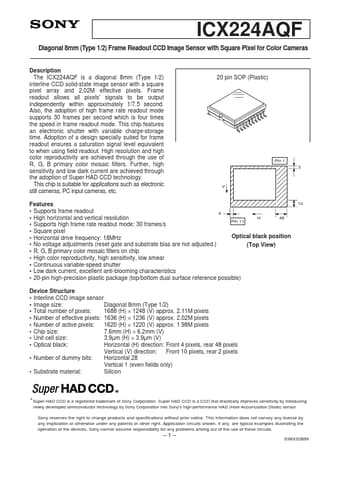

Preview of ICX224AQF PDF

Datasheet Details

Part number:

ICX224AQF

Manufacturer:

Sony

File Size:

379.53 KB

Description:

Ccd image sensor.
