ICX418ALL - Diagonal 8mm (Type 1/2) CCD Image Sensor

Product Overview

Sony

📥 Download Datasheet

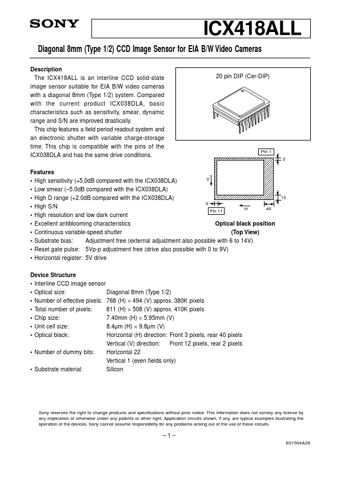

ICX418ALL Diagonal 8mm (Type 1/2) CCD Image Sensor by Sony - Datasheet Preview — Datasheet preview – ICX418ALL

Datasheet Details

Part number	ICX418ALL
Manufacturer	Sony
File Size	174.44 KB
Description	Diagonal 8mm (Type 1/2) CCD Image Sensor
Datasheet	ICX418ALL Datasheet
Additional preview pages of the ICX418ALL datasheet.

Product details

Description

The ICX418ALL is an interline CCD solid-state image sensor suitable for EIA B/W video cameras with a diagonal 8mm (Type 1/2) system.

Features

a field period readout system and an electronic shutter with variable charge-storage time. This chip is compatible with the pins of the ICX038DLA and has the same drive conditions. 20 pin DIP (Cer-DIP) Pin 1 2 Features V.
High sensitivity (+5.0dB compared with the ICX038DLA).
Low smear (.
5.0dB compared with the ICX038DLA).
High D range (+2.0dB compared with the ICX038DLA) 3.
High S/N 40 H Pin 11.
High resolution and low dark current Optical.
