ICX422AL - Diagonal 11mm (Type 2/3) CCD Image Sensor

Product Overview

Sony

📥 Download Datasheet

ICX422AL Diagonal 11mm (Type 2/3) CCD Image Sensor by Sony - Datasheet Preview — Datasheet preview – ICX422AL

Datasheet Details

Part number	ICX422AL
Manufacturer	Sony
File Size	161.54 KB
Description	Diagonal 11mm (Type 2/3) CCD Image Sensor
Datasheet	ICX422AL Datasheet

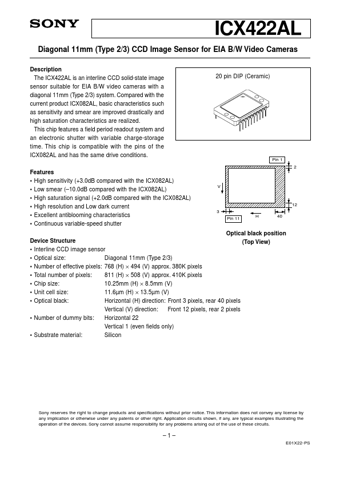

Additional preview pages of the ICX422AL datasheet.

Product details

Description

The ICX422AL is an interline CCD solid-state image sensor suitable for EIA B/W video cameras with a diagonal 11mm (Type 2/3) system.

Features

a field period readout system and an electronic shutter with variable charge-storage time. This chip is compatible with the pins of the ICX082AL and has the same drive conditions. Features.
High sensitivity (+3.0dB compared with the ICX082AL).
Low smear (.
10.0dB compared with the ICX082AL).
High saturation signal (+2.0dB compared with the ICX082AL).
High resolution and Low dark current.
Excellent antiblooming characteristics.
Continuo.
