ICX423AL - Diagonal 11mm (Type 2/3) CCD Image Sensor

Product Overview

Sony

📥 Download Datasheet

ICX423AL Diagonal 11mm (Type 2/3) CCD Image Sensor by Sony - Datasheet Preview — Datasheet preview – ICX423AL

Datasheet Details

Part number	ICX423AL
Manufacturer	Sony
File Size	161.49 KB
Description	Diagonal 11mm (Type 2/3) CCD Image Sensor
Datasheet	ICX423AL Datasheet

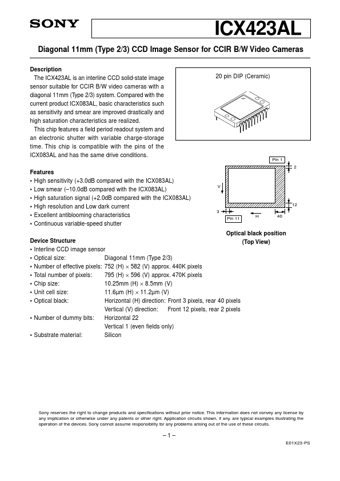

Additional preview pages of the ICX423AL datasheet.

Product details

Description

The ICX423AL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras with a diagonal 11mm (Type 2/3) system.

Features

a field period readout system and an electronic shutter with variable charge-storage time. This chip is compatible with the pins of the ICX083AL and has the same drive conditions. Features.
High sensitivity (+3.0dB compared with the ICX083AL).
Low smear (.
10.0dB compared with the ICX083AL).
High saturation signal (+2.0dB compared with the ICX083AL).
High resolution and Low dark current.
Excellent antiblooming characteristics.
Continuo.
