ICX429ALL - Diagonal 8mm (Type 1/2) CCD Image Sensor

Product Overview

Sony

📥 Download Datasheet

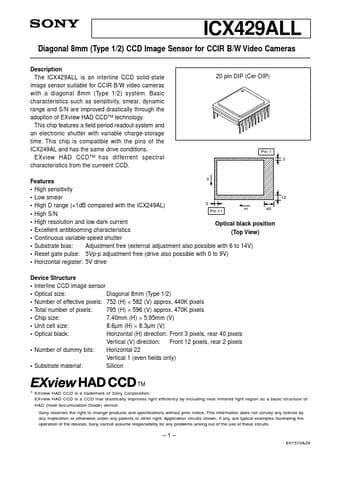

ICX429ALL Diagonal 8mm (Type 1/2) CCD Image Sensor by Sony - Datasheet Preview — Datasheet preview – ICX429ALL

Datasheet Details

Part number	ICX429ALL
Manufacturer	Sony
File Size	178.22 KB
Description	Diagonal 8mm (Type 1/2) CCD Image Sensor
Datasheet	ICX429ALL Datasheet
Additional preview pages of the ICX429ALL datasheet.

Product details

Description

The ICX429ALL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras with a diagonal 8mm (Type 1/2) system.

Features

a field period readout system and an electronic shutter with variable charge-storage time. This chip is compatible with the pins of the ICX249AL and has the same drive conditions. EXview HAD CCD TM has differrent spectral characteristics from the curreent CCD. V 20 pin DIP (Cer-DIP) Pin 1 2 Features.
High sensitivity.
Low smear 3.
High D range (+1dB compared with the ICX249AL) 40 H Pin 11.
High S/N.
High resolution and low dark current Optical blac.
