STR-DE197 FM STEREO/FM-AM RECEIVER SERVICE MANUAL

6 2. DISASSEMBLY 2-1. 2-2. 2-3. 2-4. Case 7 Front Panel Section 8 Back Panel 8 Main Board 9 Part No. 3. TEST MODE 10 MODEL US AEP CND PART No. 4-253-299-0s 4-253-299-1s 4-253-299-3s 4. DIAGRAMS 4-1. IC Pin Description 11 4-2. Circuit Boards Location 13 4-3. Block Diagram * Main S.

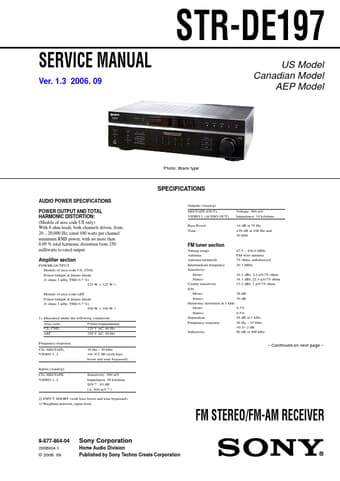

STR-DE197 SERVICE MANUAL Ver. 1.3 2006. 09 US Model Canadian Model AEP Model Photo: Black type SPECIFICATIONS AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: (Models of area code US only) With 8 ohm loads, both channels driven, from 20 20,000 Hz; rated 100 watts per channel minimum RMS power, with no more than 0.09 % total harmonic distortion from 250 milliwatts to rated output. Amplifier section POWER OUTPUT Models of area code US, CND Power Output at Stereo .
