MBRD20150CT High Power Schottky Barrier Rectifier

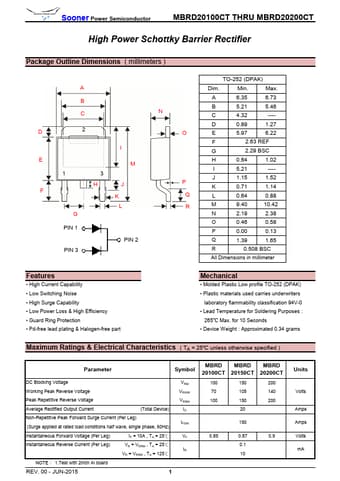

Sooner Power Semiconductor MBRD20100CT THRU MBRD20200CT High Power Schottky Barrier Rectifier Package Outline Dimensions ( millimeters ) TO-252 (DPAK) A Dim. Min. Max. B A 6.35 6.73 B 5.21 5.46 C N C 4.32 D2 D 0.89 1.27 O E 5.97 6.22 F 2.63 REF I G 2.29 BSC E 1 F M 3 HJ K H 0.64 1.02 I 5.21 -J 1.15 1.52 P K 0.71 1.14 Q L 0.64 0.88 L G R M 9.40 10.42 N 2.19 2.38 PIN 1 O 0.46 0.58 P 0.00 0.13 PIN 2 Q 1.39 1.65 PIN 3 R 0.508 BSC All Dimensions in .

MBRD20150CT Features

* High Current Capability

* Low Switching Noise

* High Surge Capability

* Low Power Loss & High Efficiency

* Guard Ring Protection

* Pd-free lead plating & Halogen-free part Mechanical

* Molded Plastic Low profile TO-252 (DPAK)

* Plast

MBRD20100CT-SoonerPowerSemiconduction.pdf

MBRD20150CT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRD20150CT, MBRD20100CT. Please refer to the document for exact specifications by model.
